>> A << 1ST Speed Gear Sleeve Installation

WARNING: This page is about a different variant/trim than selected.

Using the special tools, MD998812, MD998814 and MD998824, indicated below, install the 1st speed gear sleeve.

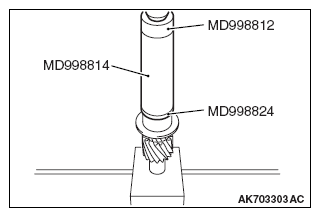

Fig 1: Installing 1st Speed Gear Sleeve Using Special Tools MD998812, MD998814 And MD998824
G09641276Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
