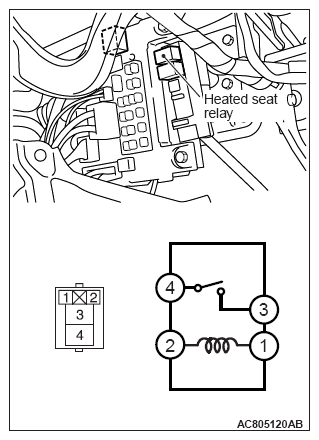

Heated Seat Relay Continuity Check
| Battery voltage |
Tester connection |
Specified condition |
| Not applied |
3 - 4 |
Open circuit |
- Connect terminal 2 to the positive battery terminal
- Connect terminal 1 to the negative battery terminal
|
Continuity exists (2Ω or less) |
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
