Special Tools

Tool Tool number and name Supersession Application
G09650956Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
 MB991955
  1. MB991824
  2. MB991827
  3. MB991910
  4. MB991911
  5. MB991825
  6. MB991826

M.U.T.-III Sub Assembly
  1. Vehicle communication interface (V.C.I.)
  2. M.U.T.-III USB Cable
  3. M.U.T.-III Main Harness A (Vehicles with CAN communication system)
  4. M.U.T.-III Main Harness B (Vehicles without CAN communication system)
  5. M.U.T.-III main harness C (for Daimler models only)
  6. M.U.T.-III trigger Harness
 MB991824-KIT
NOTE: G: MB991826 M.U.T.-III Trigger Harness is not necessary when pushing V.C.I. ENTER key.
CAUTION: For vehicles with CAN communication, use M.U.T.-III main harness A to send simulated vehicle speed. If you connect M.U.T.-III main harness B instead, the CAN communication does not function correctly.
Power steering system air bleeding (Calibration by using the scan tool)
G09650957Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
 MB991897 or MB992011
Ball joint remover		 MB991113-01, MB990635-01 or General service tool Knuckle and tie rod end ball joint disconnection
NOTE: Steering linkage puller (MB990635 or MB991113) is also available to disconnect knuckle and tie rod end ball joint.
G09650958Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
 MB990326
Preload socket		 General service tool Tie rod end ball joint break-away torque check
G09650959Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
 MB991548
Power steering oil pressure gauge adapter (Pump side)		 MB991548-01 Oil pump pressure test
G09650960Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
 MB991549
Power steering oil pressure gauge adapter (Hose side)		 MB991549-01
G09650961Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
 MB990662
Power steering oil pressure gauge		 MB990662-01
G09650962Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
 MB990784
Ornament remover		 General service tool Cover removal
G09650963Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
 MB990803
Steering wheel puller		 General service tool Steering wheel removal
G09650964Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
 MB990228 or MB991006
Preload socket		 MB990228-01 Steering gear total pinion torque check
G09650965Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
 MB990925
Bearing and oil seal installer set		 MB990925-01 or general service tool
  • Oil seal and bearing installation
  • MB990927, MB990938, MB990939 (For details, refer to SPECIAL TOOLS ).
G09650966Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
 MB991203
Oil seal and bearing installer		 Tool not available Oil seal and bearing installation
G09650967Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
 MB992209
Bellows band crimping tool		 MB992209 Bellows band installation
G09650968Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
 MB992249 Variable spanner Tie-rod removal and installation
G00381286Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
 MD998812
Cap installer		 - Tie-rod end ball joint cover installation <Type A>
G00381288Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
 MD998813
Installer 100		 -

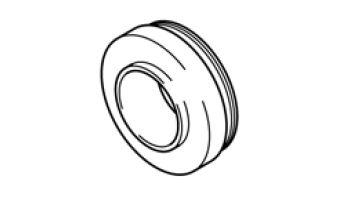

G00381289Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
 MD998818
Installer adapter		 -

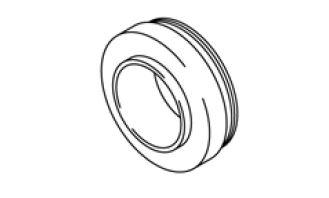

G00381290Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
 MD998820
Installer adapter		 -

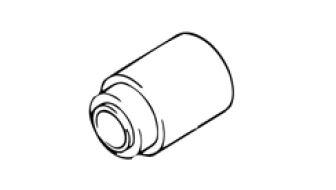

G00381291Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
 MB990776
Front axle base		 MB990776-01 Tie-rod end ball joint cover installation <Type B>
