Transaxle Control Cable (Transaxle Side) Installation

  1. Move the selector lever to the "N" range.
  2. Move the manual control lever to Neutral position.
  3. Align the hole at the end of the manual control lever and the hole in the transmission range switch body flange (section A - A).
    NOTE: Insert a oslash5 mm (0.2 inch) bar into the aligned holes in the transmission range switch body flange and on the tip of the manual control lever to position the transmission range switch body.

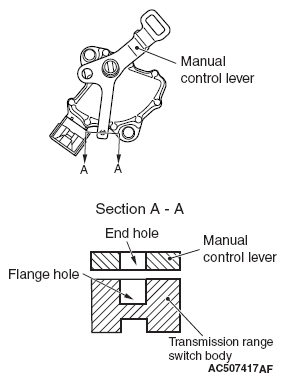

    Fig 1: Identifying Manual Control Lever
    G06481867Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  4. Use the adjusting nut to tighten the transaxle control cable to the specified torque.

    Tightening torque: 9.5 ± 3.5 N.m (84 ± 31 in-lb)

  5. Make sure that the transaxle-side ranges that are corresponding to the transmission range operate and function without fail.

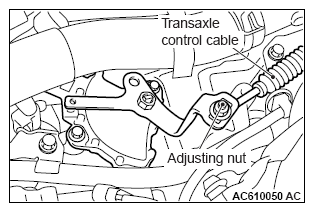

    Fig 2: Identifying Adjusting Nut To Transaxle Control Cable
    G08293112Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
