Battery Removal

CAUTION:
  • Do not allow water or dust to enter the inside of the transmitter assembly when it is open. Also, do not touch the precision electronic device.
  • To prevent damage to the transmitter assembly, wrap a flat-tipped screwdriver with protective tape before prying.

    Insert a flat-tipped screwdriver in the area shown, and remove the battery by prying it with the screwdriver.

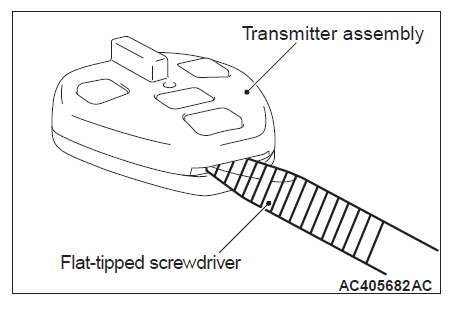

    Fig 1: Inserting Flat-Tipped Screwdriver
    G00558578Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
