Screen Flow Of Scan Tool (M.U.T.-III)

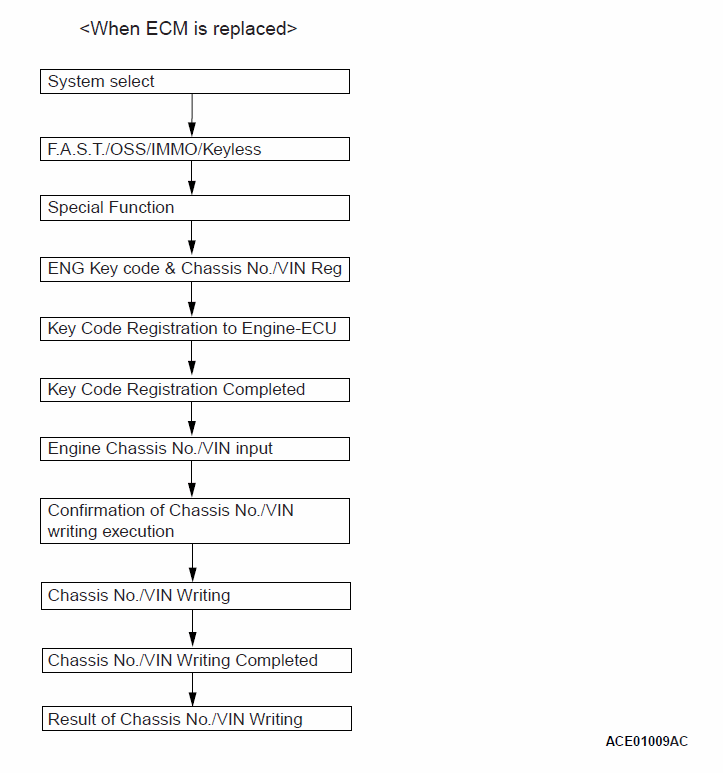

Fig 1: Scan Tool Screen Flow Chart (1 Of 2)
G00562308Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

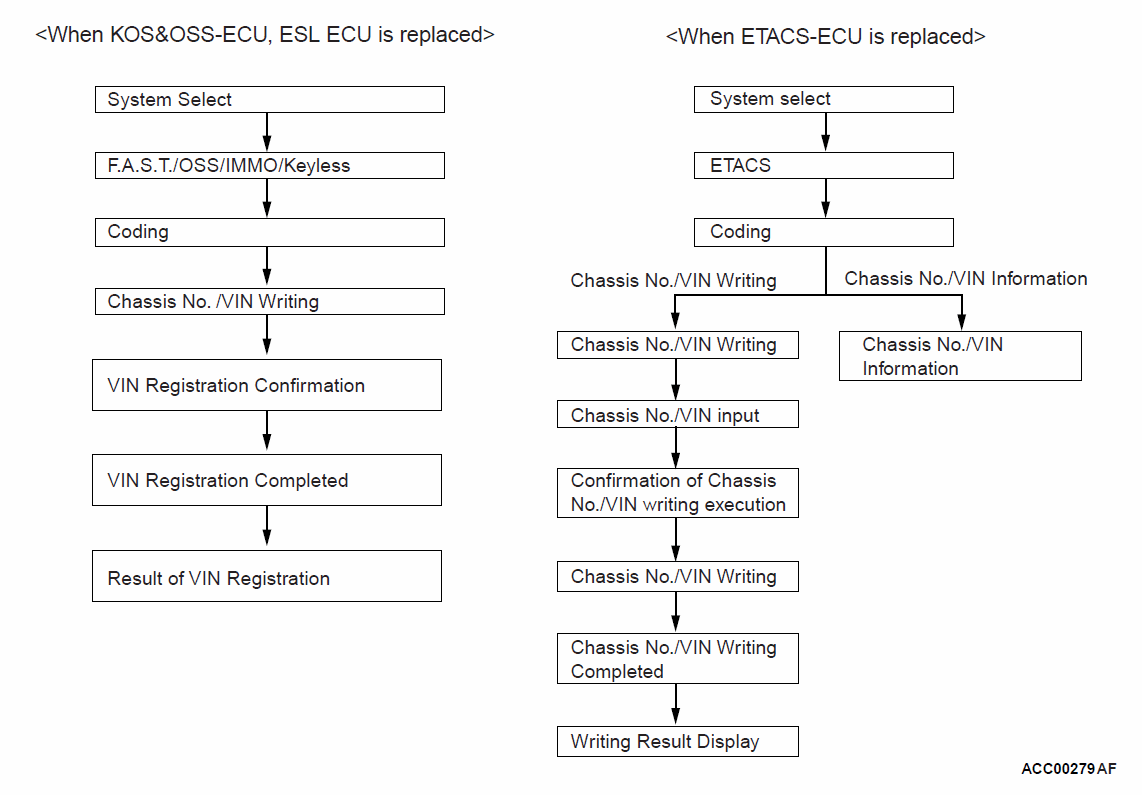

Fig 2: Scan Tool Screen Flow Chart (2 Of 2)
G00562309Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
NOTE:
  • VIN writing of the OSS-ECU is described in "Keyless Operation System (KOS)". (Refer to ON-VEHICLE SERVICE < OSS-ECU > .)
  • Perform the variant coding of the ECM when the VIN is registered to the ECM.
