Damper Control Motor Assembly Removal And Installation: Notes

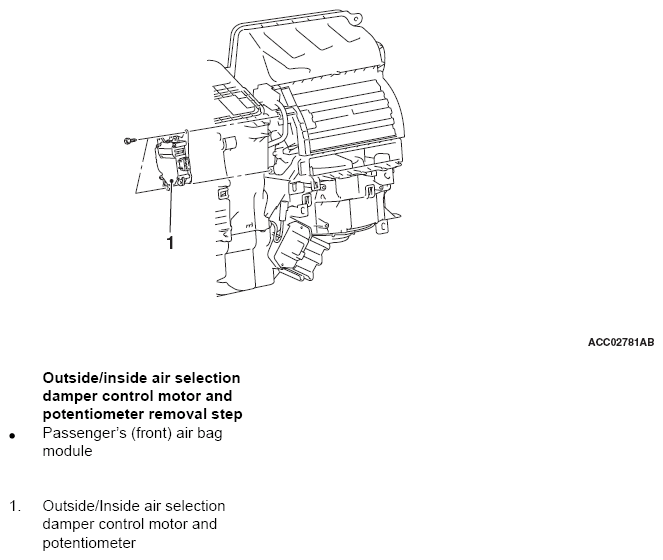

Fig 1: Identifying Outside/Inside Air Selection Damper Control Motor And Potentiometer
G09633209Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

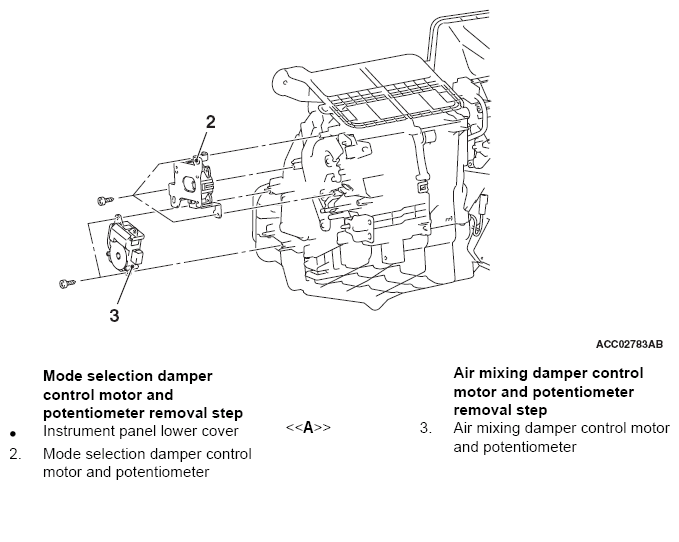

Fig 2: Identifying Mode Selection And Air Mixing Damper Control Motors And Potentiometer
G09633210Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
