Engine Starting Switch Assembly/Steering Lock Bracket/Steering Lock Bolt Installation

Secure the steering lock bracket to the engine starting switch assembly with steering lock bolt (Upper). Tighten the steering lock bolt until its head is broken off.
Insert the engine starting switch assembly into the tip of the column shaft, fit the protrusion of the engine starting switch assembly to the hole of the steering column shaft assembly, install the engine starting switch assembly and tighten the steering lock bolt (lower) until its head is broken off.

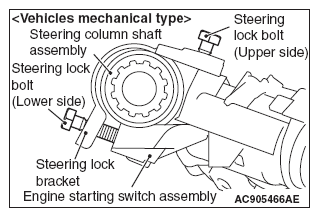

Fig 1: Securing Steering Lock Bracket To Engine Starting Switch Assembly (Vehicles Mechanical Type)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

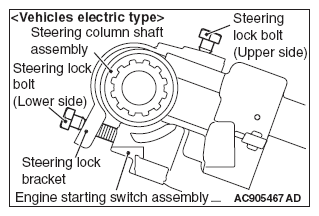

Fig 2: Securing Steering Lock Bracket To Engine Starting Switch Assembly (Vehicles Electric Type)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

CAUTION: As for the mechanical type with solenoid, connect the body side wiring harness connector to the steering lock solenoid connector. Do not connect the harness connector to the steering lock solenoid dummy connector.

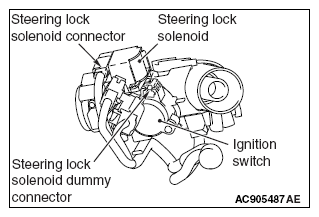

Fig 3: Identifying Steering Lock Solenoid, Connector And Ignition Switch
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
