Engine Assembly Supporting

< When engine hanger (Special tool: MB991928) is used >
1. Assemble the engine hanger (Special tool: MB991928). (Set the components below to the base hanger.)
  - Slide bracket (HI)
  - Foot x 4 (standard) (MB991932)
  - Joint x 2 (50) (MB991929)
2. Set the foot of the engine hanger (Special tool: MB991928) as shown in the Illustration below .
  NOTE: Adjust the engine hanger balance.
3. Remove the garage jack and then remove the transaxle assembly upper part coupling bolts that have been loosened previously.

  Fig 1: Adjusting Engine Hanger Balance
  Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

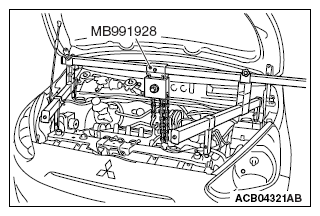

  Fig 2: Removing Transaxle Assembly Upper Part Coupling Bolts
  Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
< When engine hanger (Special tool: MB991895) and engine hanger attachment (Special tool: MB992906) are used >
1. Set the foot of the engine hanger (Special tool: MB991895) and engine hanger attachment (Special tool: MB992906) as shown in the Illustration below .
  NOTE: Adjust the engine hanger balance.
2. Remove the garage jack and then remove the transaxle assembly upper part coupling bolts that have been loosened previously.

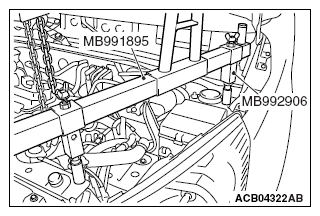

  Fig 3: Identifying Engine Hanger Attachment (MB992906)
  Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

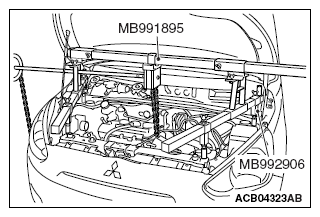

  Fig 4: Removing Transaxle Assembly Upper Part Coupling Bolts
  Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
