Switch Check

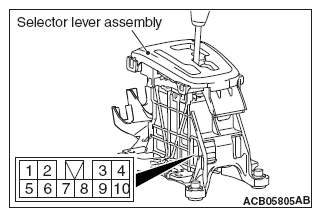

Fig 1: Identifying Selector Lever Connector Terminals
G09631475Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Item Selector lever position Terminal number Continuity
P position detect switch < Vehicles with KOS > P 4 - 6 No continuity
Other than above 4 - 6 Continuity
P position detect switch < Vehicles without KOS > P 5 - 6 No continuity
Other than above 5 - 6 Continuity
