Fuel Tank Temperature Sensor Check

Remove the rear seat cushion assembly (Refer to REAR SEAT ASSEMBLY ).
Remove the inspection lid.

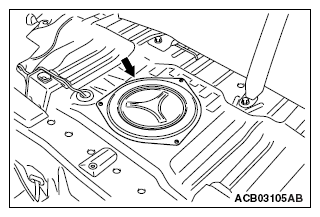

Fig 1: Locating Inspection Lid
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Disconnect the fuel pump module connector.

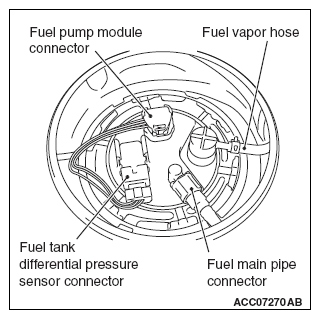

Fig 2: Identifying Fuel Pump Module Connector, Fuel Vapor Hose And Fuel Main Pipe Connector
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Measure the resistance between connector terminals No. 1 and No. 3 of the fuel pump module (incorporating fuel tank temperature sensor).
Standard value: 0.43 - 12.3 kΩ [at -10 - 70°C (14 - 158°F)]
If not within the standard value, replace the fuel level sensor and fuel tank temperature sensor (Refer to < FUEL PUMP MODULE > ).
Connect the fuel pump module connector.
Install the inspection lid.
Install the rear seat cushion assembly (Refer to REAR SEAT ASSEMBLY ).

Fig 3: Measuring Resistance Between Connector Terminals No. 1 And No. 3
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
