Disassembly And Reassembly: Notes

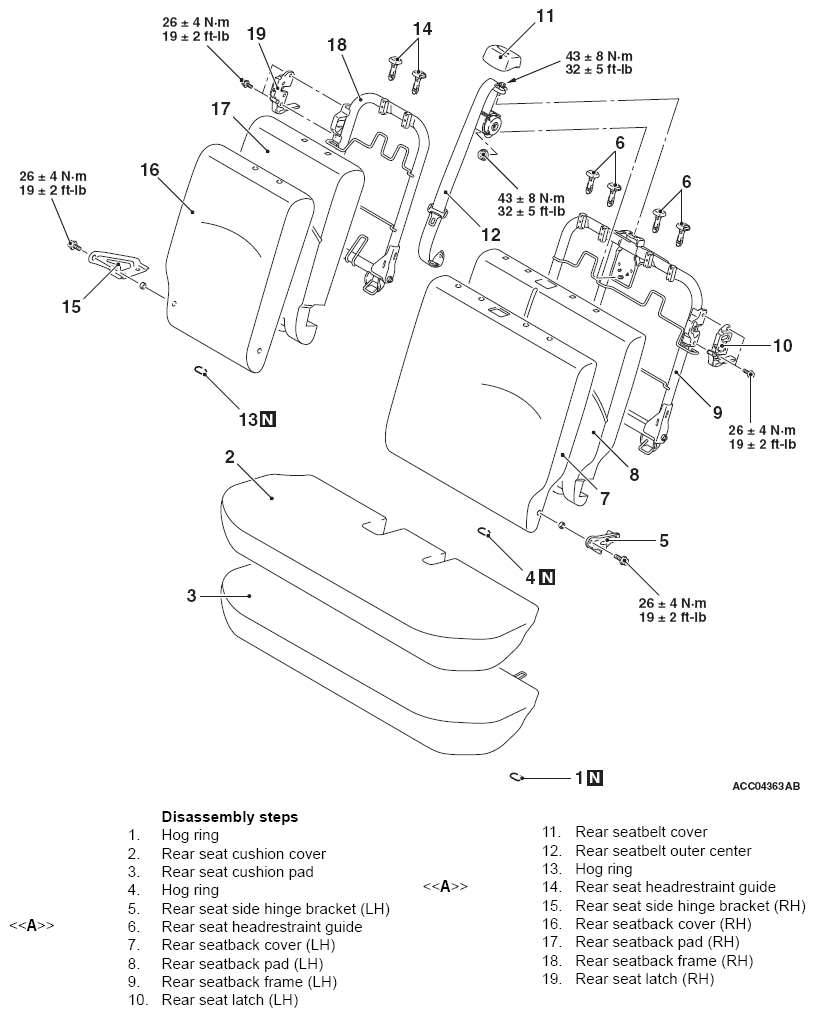

Fig 1: Disassembled View Of Seat Assembly With Torque Specifications
G09632535Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
