Removal And Installation: Notes

Pre-removal operation

Engine room under cover removal (Refer to REMOVAL AND INSTALLATION ).
Transmission fluid draining (Refer to TRANSMISSION FLUID CHANGE ).
Engine Coolant Draining (Refer to ON-VEHICLE SERVICE ).
Air cleaner bracket removal (Refer to AIR CLEANER ).
Battery and Battery Tray Removal (Refer to BATTERY ).
ECM removal (Refer to ENGINE CONTROL MODULE (ECM) ).
Drive shaft removal (Refer to DRIVESHAFT ASSEMBLY ).

Post-installation operation

Drive shaft installation (Refer to DRIVESHAFT ASSEMBLY ).
Battery and battery tray installation (Refer to BATTERY ).
ECM installation (Refer to ENGINE CONTROL MODULE (ECM) ).
Air cleaner assembly installation (Refer to AIR CLEANER ).
Engine room under cover installation (Refer to REMOVAL AND INSTALLATION ).
Engine Coolant Refilling (Refer to ON-VEHICLE SERVICE ).
Transmission fluid refilling (Refer to TRANSMISSION FLUID CHANGE ).

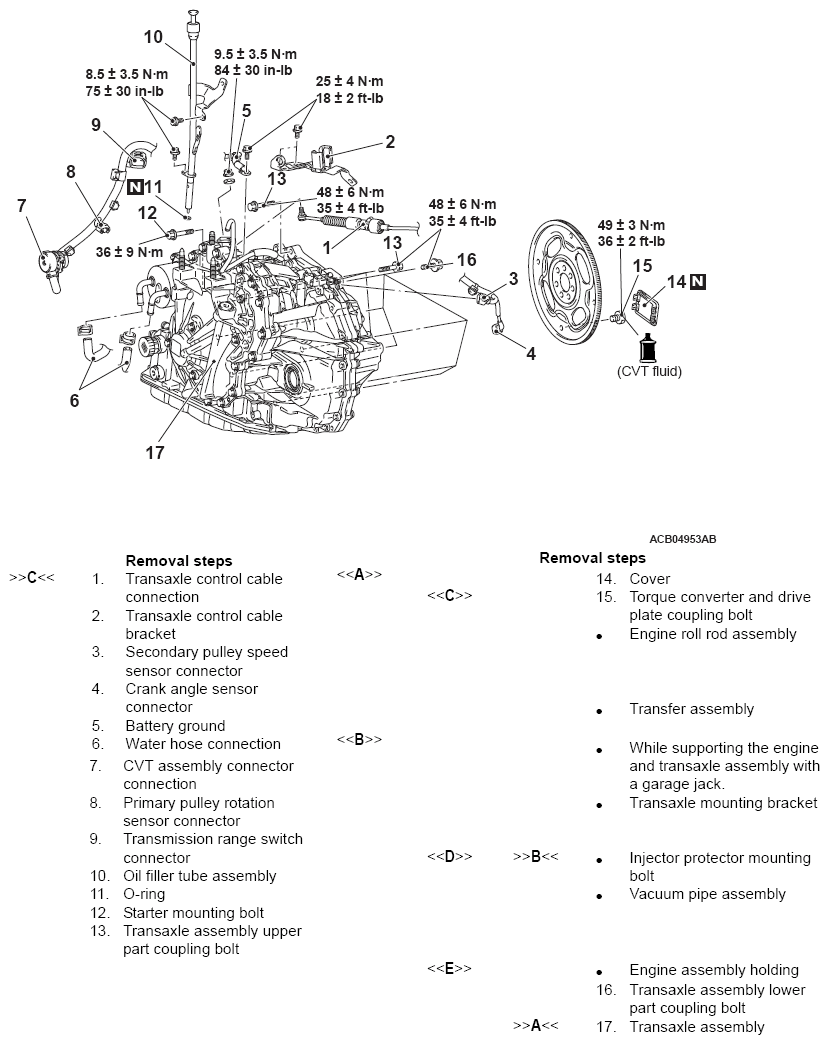

Fig 1: Removing/Installing Transaxle Assembly Components With Torque Specification

G10224558

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

MB991454: Engine Hanger Balancer
MB991527: Engine Hanger
MB991895: Engine Hanger
MB991928: Engine Hanger
MB991932: Foot
MB992853: Engine hanger plate
MB992906: Engine hanger attachment
