Disassembly And Assembly: Notes

CAUTION: The pulley should be disassembled only when abnormal noise is heard from the CVT.

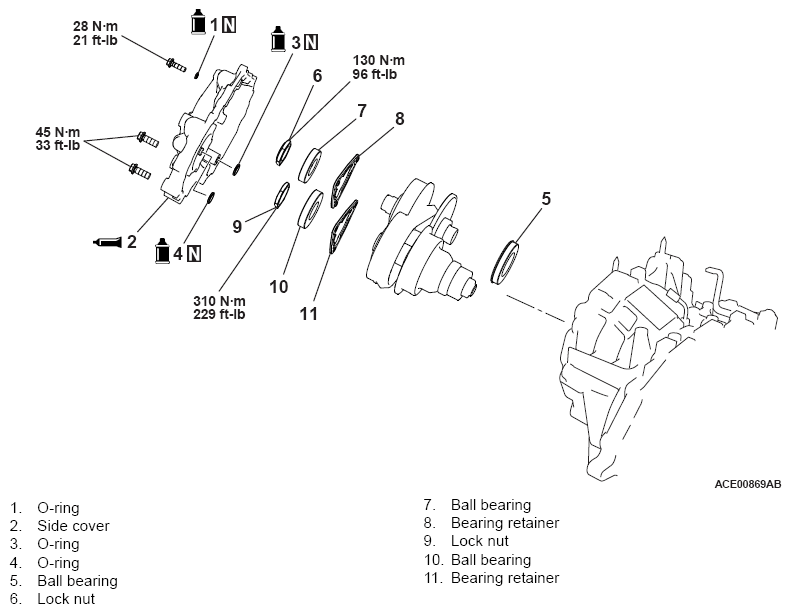

Fig 1: Disassembling/Assembling Pulley Components With Torque Specification
G10223229Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
