Component Locations: Grounding

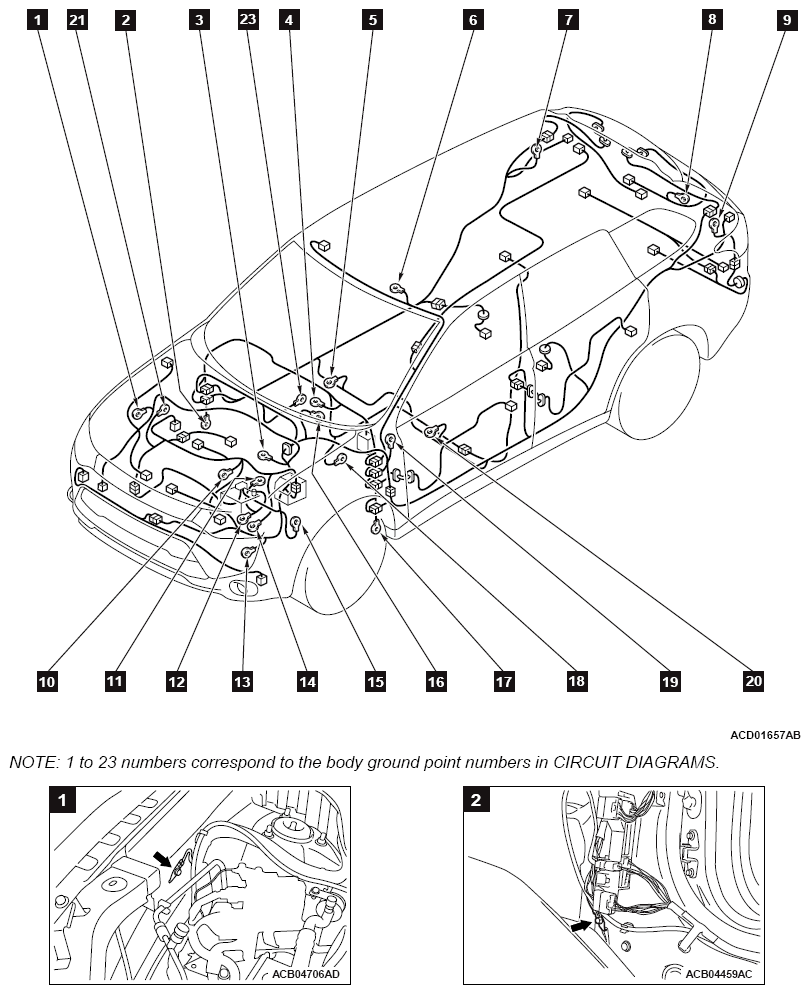

Fig 1: Grounding Location
G10226104Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

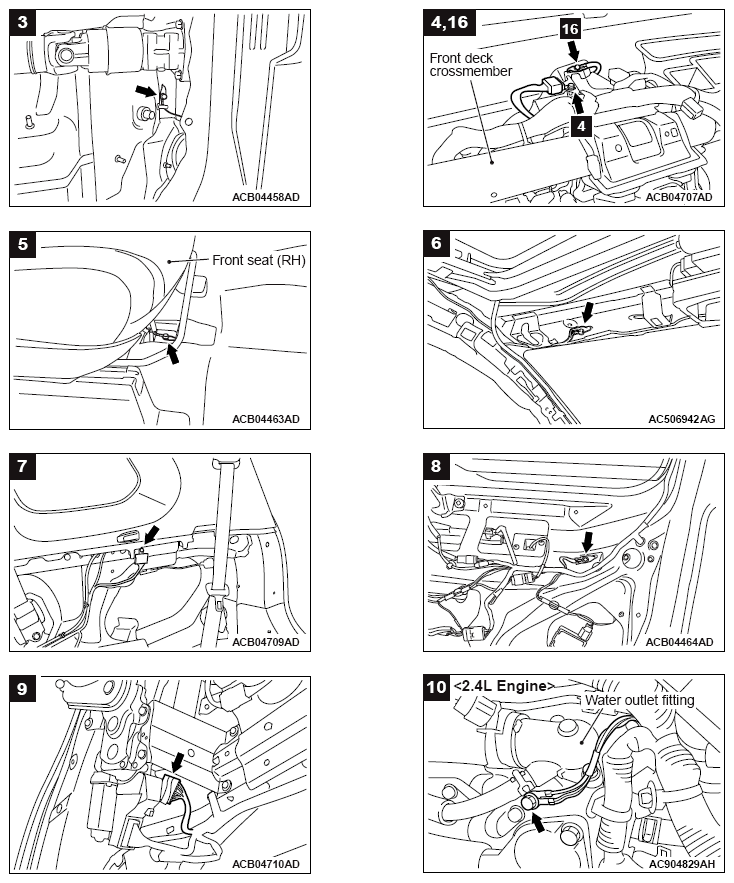

Fig 2: Grounding Location
G10226105Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

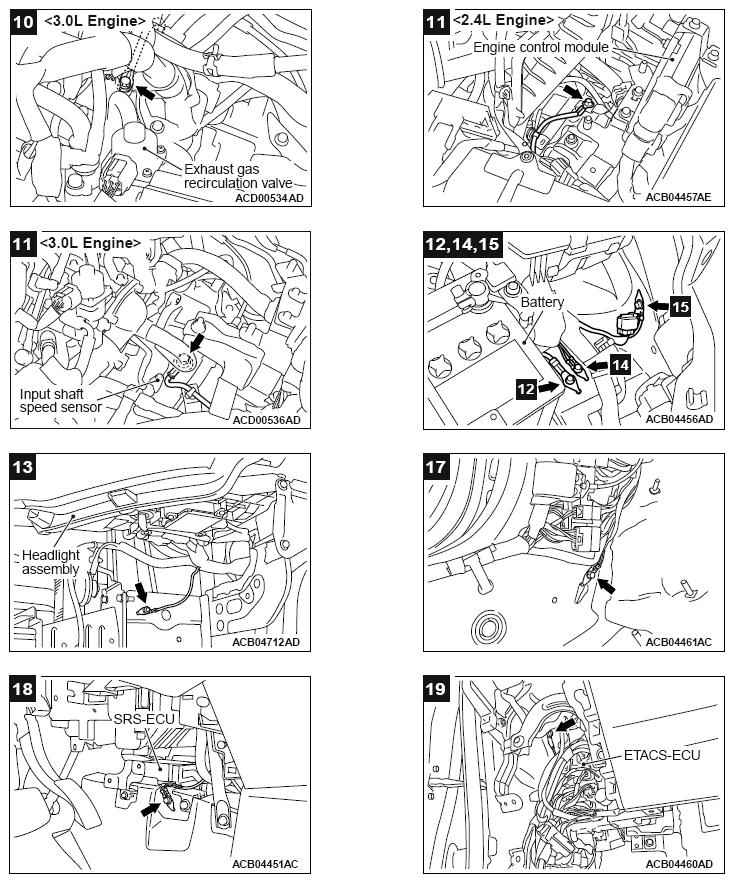

Fig 3: Grounding Location
G10226106Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

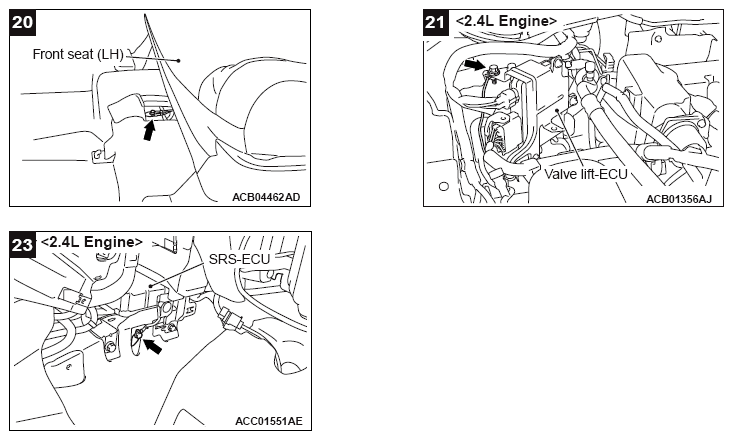

Fig 4: Grounding Location
G10226107Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
