Vehicles For CANADA

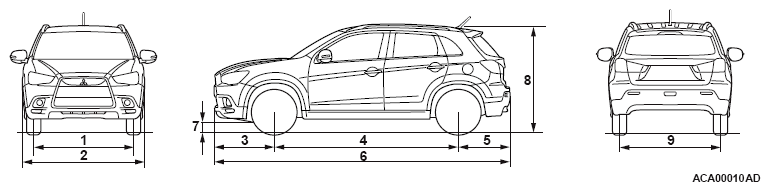

Fig 1: Identifying Vehicle Dimension (CANADA)
G10227060Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Item GA2W
XNSHL5M XTMHL5M
Vehicle dimension mm (in) Front track 1 1, 525 (60.0) 1, 525 (60.0)
Overall width 2 1, 770 (69.7) 1, 770 (69.7)
Front overhang 3 870 (34.3) 870 (34.3)
Wheel base 4 2, 670 (105.1) 2, 670 (105.1)
Rear overhang 5 755 (29.7) 755 (29.7)
Overall length 6 4, 295 (169.1) 4, 295 (169.1)
Ground clearance (unladen) 7 215 (8.5) 215 (8.5)
Overall height (unladen) Without roof rail 8 1, 630 (64.2) 1, 630 (64.2)
With roof rail 1, 640 (64.6) 1, 640 (64.6)
Rear track 9 1, 525 (60.0) 1, 525 (60.0)
Vehicle weight kg (lb) Kerb weight Without optional parts 1, 370 (3, 021) 1, 405 (3, 098)
With optional parts 1, 386 (3, 056) 1, 427 (3, 146)
Max. gross vehicle weight 1, 970 (4, 343) 1, 970 (4, 343)
Max. axle weight rating-front 1, 030 (2, 271) 1, 030 (2, 271)
Max. axle weight rating-rear 1, 000 (2, 205) 1, 000 (2, 205)
Seating capacity 5 5
Engine Model code 4B11 4B11
Type DOHC MIVEC DOHC MIVEC
Piston displacement cm3 (cu in) 1, 998 (121.9) 1, 998 (121.9)
Maximum output kW/r/min (HP/r/min) 110/6, 000 (148/6, 000) 110/6, 000 (148/6, 000)
Maximum torque N.m/r/min (ft-lb/r/min) 197/4, 200 (145/4, 200) 197/4, 200 (145/4, 200)
Fuel system Fuel supply system MFI MFI
Transmission Model code F5MBB F1CJC
Type FWD, 5M/T FWD, INVECS-III CVT with sport mode
Minimum turning radius m (ft) Body 5.63 (18.5) 5.63 (18.5)
Wheel 5.3 (17.4) 5.3 (17.4)
Vehicle dimension mm (in) Front track 1 1, 525 (60.0) 1, 525 (60.0)
Overall width 2 1, 770 (69.7) 1, 770 (69.7)
Front overhang 3 870 (34.3) 870 (34.3)
Wheel base 4 2, 670 (105.1) 2, 670 (105.1)
Rear overhang 5 755 (29.7) 755 (29.7)
Overall length 6 4, 295 (169.1) 4, 295 (169.1)
Ground clearance (unladen) 7 215 (8.5) 215 (8.5)
Overall height (unladen) Without roof rail 8 1, 630 (64.2) 1, 630 (64.2)
With roof rail 1, 640 (64.6) 1, 640 (64.6)
Rear track 9 1, 525 (60.0) 1, 525 (60.0)
Vehicle weight kg (lb) Kerb weight Without optional parts 1, 470 (3, 241) 1, 485 (3, 274)
With optional parts 1, 492 (3, 289) 1, 539 (3, 393)
Max. gross vehicle weight 1, 970 (4, 343) 1, 970 (4, 343)
Max. axle weight rating-front 1, 030 (2, 271) 1, 030 (2, 271)
Max. axle weight rating-rear 1, 000 (2, 205) 1, 000 (2, 205)
Seating capacity 5 5
Engine Model code 4B11 4B11
Type DOHC MIVEC DOHC MIVEC
Total displacement mL 1, 998 (121.9) 1, 998 (121.9)
Maximum output kW/r/min (HP/r/min) 110/6, 000 (148/6, 000) 110/6, 000 (148/6, 000)
Maximum torque N.m/r/min (ft-lb/r/min) 197/4, 200 (145/4, 200) 197/4, 200 (145/4, 200)
Fuel system Fuel supply system MFI MFI
Transmission Model code W1CJC W1CJC
Type AWD, INVECS-III CVT with sport mode AWD, INVECS-III CVT with sport mode
Minimum turning radius m (ft) Body 5.63 (18.5) 5.63 (18.5)
Wheel 5.3 (17.4) 5.3 (17.4)
Item GA5W
XTXHZL5M
Vehicle dimension mm (in) Front track 1 1, 525 (60.0)
Overall width 2 1, 770 (69.7)
Front overhang 3 870 (34.3)
Wheel base 4 2, 670 (105.1)
Rear overhang 5 755 (29.7)
Overall length 6 4, 295 (169.1)
Ground clearance (unladen) 7 215 (8.5)
Overall height (unladen) Without roof rail 8 1, 630 (64.2)
With roof rail 1, 640 (64.6)
Rear track 9 1, 525 (60.0)
Vehicle weight kg (lb) Kerb weight Without optional parts 1, 490 (3, 285)
With optional parts 1, 544 (3, 404)
Max. gross vehicle weight 1, 970 (4, 343)
Max. axle weight rating-front 1, 030 (2, 271)
Max. axle weight rating-rear 1, 000 (2, 205)
Seating capacity 5
Engine Model code 4B12
Type DOHC MIVEC
Piston displacement cm3 (cu in) 2, 360 (144.0)
Maximum output kW/r/min (HP/r/min) 125/6, 000 (168/6, 000)
Maximum torque N.m/r/min (ft-lb/r/min) 226/4, 100 (167/4, 100)
Fuel system Fuel supply system MFI
Transmission Model code W1CJA
Type AWD, INVECS-III CVT with sport mode
Minimum turning radius m (ft) Body 5.63 (18.5)
Wheel 5.3 (17.4)
