CAN Function Check

Select "CAN Function Check" on "Service" screen.

Fig 1: Display - CAN Function Check On Service Screen
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Select "CAN Communication Confirmation" on "CAN Function Check" screen.

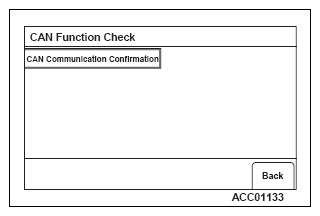

Fig 2: Display - CAN Communication Confirmation On CAN Function Check Screen
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Select "List Of Connection Equipment", "Version Indication" or "CAN BOX Memory Data Indication" from "CAN Communication Confirmation" screen.

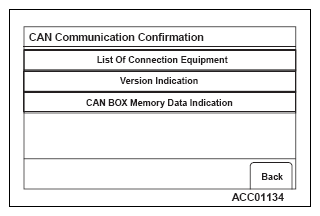

Fig 3: Display - CAN Communication Confirmation Screen
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

If "List Of Connection Equipment" is selected on "CAN Communication Confirmation" screen, the system will determine which equipment is installed according to the connected equipment reference table. Then the equipment which are connected to the CAN box unit will be displayed.

Screen indication	Equipment
HVAC	A/C-ECU
FCM	ETACS-ECU
OSS	OSS-ECU
CCN	Combination meter
ETG	Electric liftgate control unit

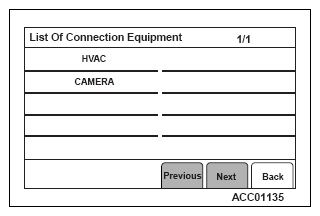

Fig 4: Display - List Of Connection Equipment On CAN Communication Confirmation Screen

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

If "Version Indication" is selected on "CAN Communication Confirmation" screen, the version for each item is displayed.

Fig 5: Display - Version Indication On CAN Communication Confirmation Screen
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
If "CAN BOX Memory Data Indication" is selected on "CAN Communication Confirmation" screen, "CAN BOX Memory Data Indication" will be displayed.
If any item is selected on "CAN BOX Memory Data Indication" screen, its relevant information is displayed.

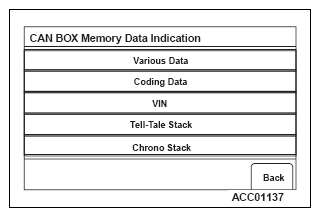

Fig 6: Display - CAN BOX Memory Data Indication On CAN Communication Confirmation Screen
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
- Various Data

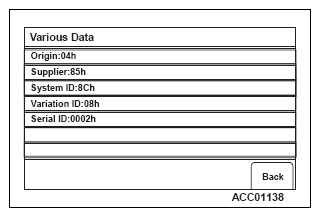

  Fig 7: Display - Various Data Screen
  Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
- Coding Data

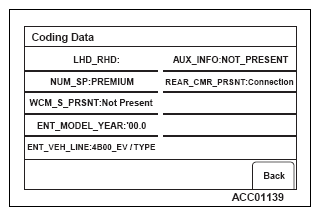

  Fig 8: Display - Coding Data Screen
  Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
- Chrono Stack

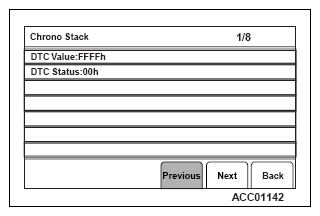

  Fig 9: Display - Chrono Stack Screen
  Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
