Column Switch Assembly Installation

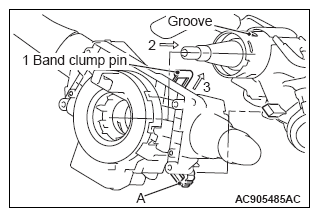

- Using a pliers or similar tool, pinch and lift the band clump pin shown in the figure.
- Align the part "A" position in the figure with the steering lock side rib, and then insert the column switch assembly into the column shaft.
- After mounting the column switch assembly by securely fitting the column switch assembly claw with the column shaft groove, release the band clump pin.
