Hub Removal

CAUTION: In the hub removal operation, make sure to replace the wheel bearing with new one.

Replace special tool MB992250 with a guide of special MB991355 as shown in the figure.

Fig 1: Replacing Special Tool MB992250
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Insert special tool MB992250 in the knuckle and tighten it with a bolt and nut.
NOTE: Set the spacers of special tool MB992250 as shown in the figure.

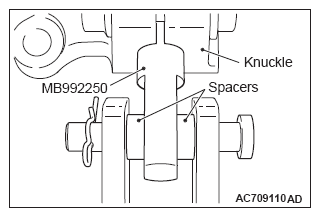

Fig 2: Inserting Special Tool MB992250
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Use special tools MB991000, MB991017, MB991355 and MB992250 to remove the hub.

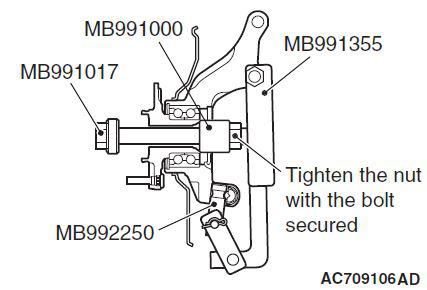

Fig 3: Removing Hub Using Special Tools MB991000/MB991017
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
