Stabilizer Link Connection

Use a hexagon wrench to counterhold the stabilizer link as shown. Then use a wrench to install the nut securing the stabilizer link to the strut.

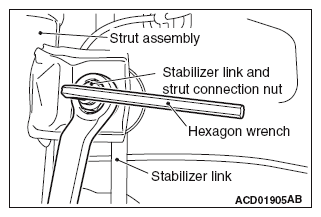

Fig 1: Securing Stabilizer Link To Strut
G09670029Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
