Multiuse Tester (M.U.T. - III) Sub Assembly

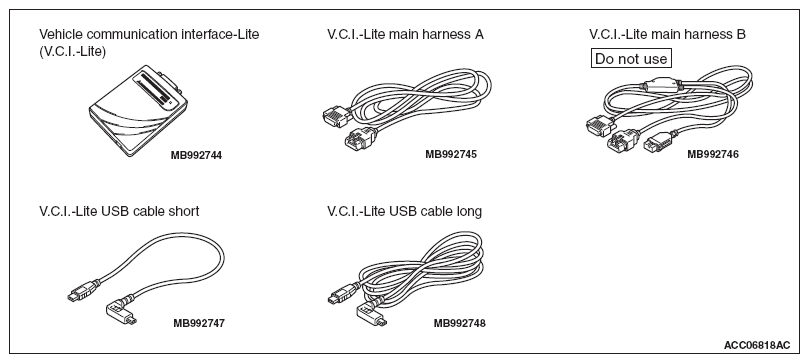

Fig 1: Scan Tool Chart - Multi Use Tester (M.U.T.-III) Sub Assembly (1 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

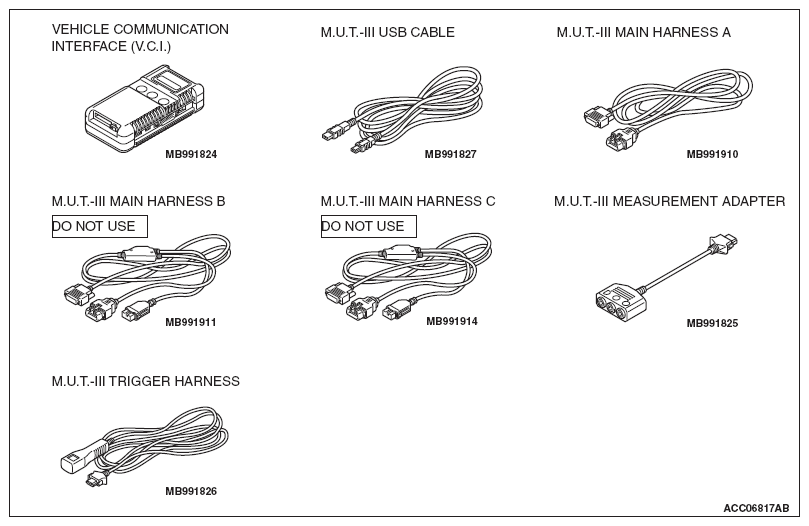

Fig 2: Scan Tool Chart - Multi Use Tester (M.U.T.-III) Sub Assembly (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Both the scan tool MB991824 (V.C.I.) and the scan tool MB992744 (V.C.I.-Lite) can be used.

CAUTION: For the V.C.I., use MB991827 and MB991910. For the V.C.I.-Lite, use MB992745, MB992747 and MB992748.

Refer to the "M.U.T.-III OPERATION MANUAL" for instructions on handling the scan tool (M.U.T.-III).

CAUTION: Turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting the scan tool (M.U.T.-III).

Connect the scan tool (M.U.T.-III) to the data link connector as shown in the illustration.

Fig 3: Connecting Scan Tool (M.U.T.-III) To Data Link Connector
