Steering Column Upper Bolt (Column Axis And Intermediate Shaft Assembly)/Steering Column Lower Bolt (Intermediate Shaft Assembly And Steering Gear & Linkage Connection) Installation

Insert the steering column bolt into the non-threaded bolt hole, and tighten it to the specified torque.

Tightening torque: 36 ± 6 N.m (27 ± 4 ft-lb)

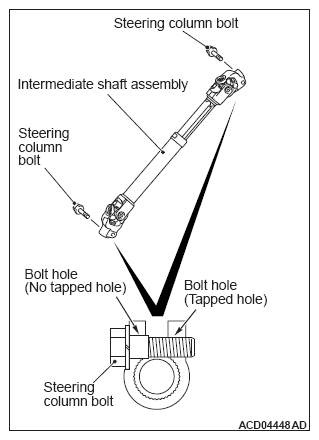

Fig 1: Inserting Steering Column Bolt

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
