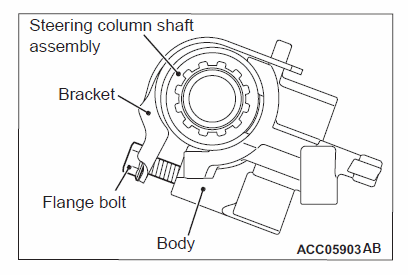

Body/Bracket Installation (Vehicles With Steering Lock Dummy Bracket)
- Insert the housing from the column shaft end, and then engage the protrusion on the housing with the recess on the steering column shaft assembly.
- Tighten the flange bolt to the specified torque.
Tightening torque: 12 ± 5 N.m (106 ± 44 in-lb)
