Motor (EPS-Ecu) Installation

  1. Insert the motor, and check that the motor flange moves with the bolts not tightened.
    CAUTION:
    • Be careful to avoid scratches or intrusion of foreign materials on the mating surface of the motor and the worm housing.
    • Proceed carefully to ensure that the electric motor does not move, otherwise noise may be caused.

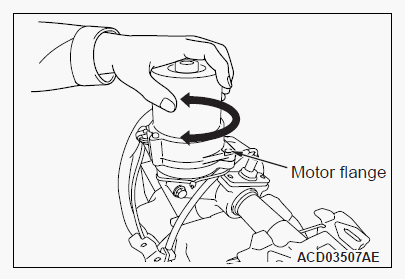

    Fig 1: Motor Flange
    G00563113Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  2. Rotate the steering column shaft at a speed of approximately one turn per second. While doing so, tighten the electric motor mounting bolts alternately by hand.
    NOTE: The steering column shaft can be rotated in either direction (right and left).

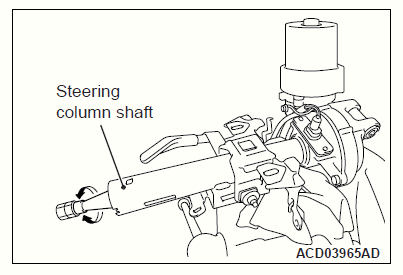

    Fig 2: Steering Column Shaft
    G00563114Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  3. Tighten the electric motor mounting bolts to the specified torque.

    Tightening torque: 19 ± 3 N.m (14 ± 2 ft-lb)

  4. Install the two nut to the end of the steering column shaft. Then use the preload socket (Special tool: MB990326) to rotate the shaft at a speed of one turn per 4 to 6 seconds, and then measure the total rotation torque.
    NOTE:
    • Be sure to make a note of the measured value, as the value will be used when installing the motor.
    • Rotate by 180° in left and right directions from the neutral position, and measure the total rotation torque.

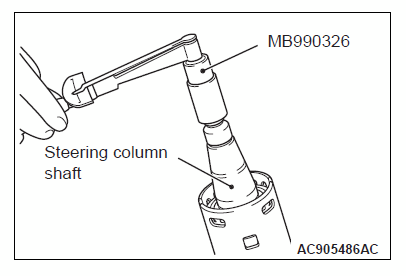

    Fig 3: Steering Column Shaft & Special Tool MB990326
    G00563115Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
    CAUTION: If the total rotation torque fluctuation compared with the value measured at removal is ±10% or more, remove the motor again and repeat installation steps 1, 2 and 3.
  5. Connect the wiring harness.
  6. Use a black felt pen to apply a mark near the label as shown as a visual indication that this work has been completed.

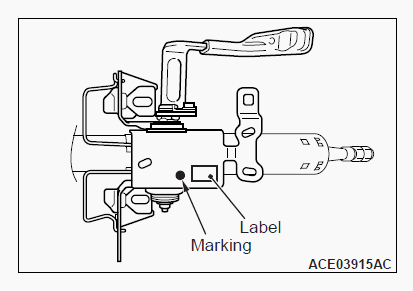

    Fig 4: Black Felt Pen Mark & Label
    G00563112Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
