DISASSEMBLY AND REASSEMBLY (2.4L Engine): Notes

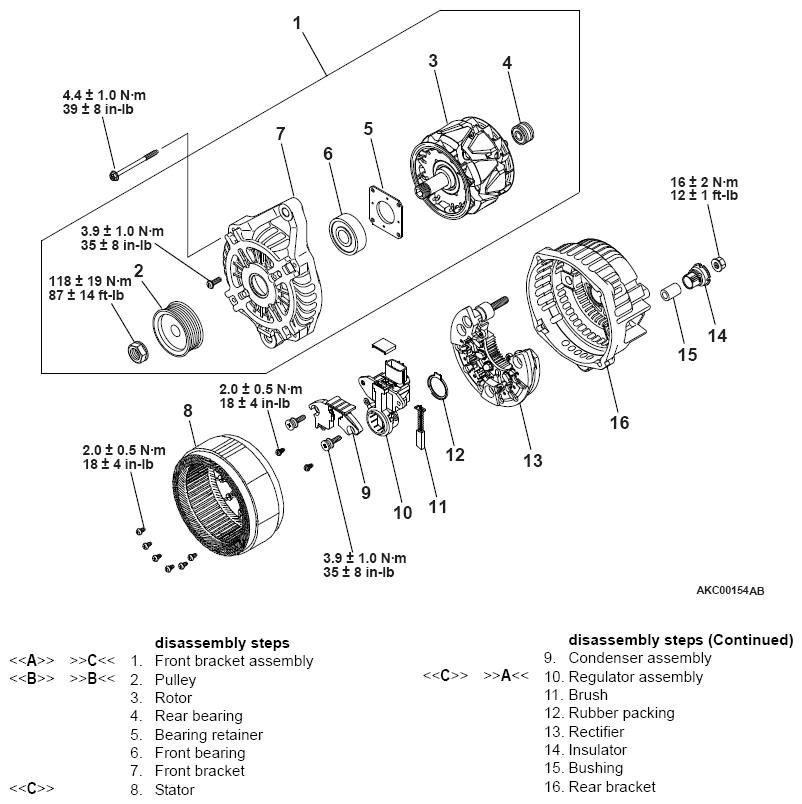

Fig 1: Disassembling/Assembling Engine Electrical Charging System Components With Torque Specifications
G10224318Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
