A/C Compressor And Clutch Assembly Installation

Tighten A/C compressor and clutch assembly mounting bolts to the specified torque in the order of number shown in the illustration.

Tightening torque: 23 ± 6 N.m (17 ± 4 ft-lb)

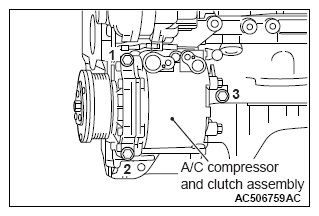

Fig 1: Identifying A/C Compressor And Clutch Assembly

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
