Disassembly And Assembly: AWD

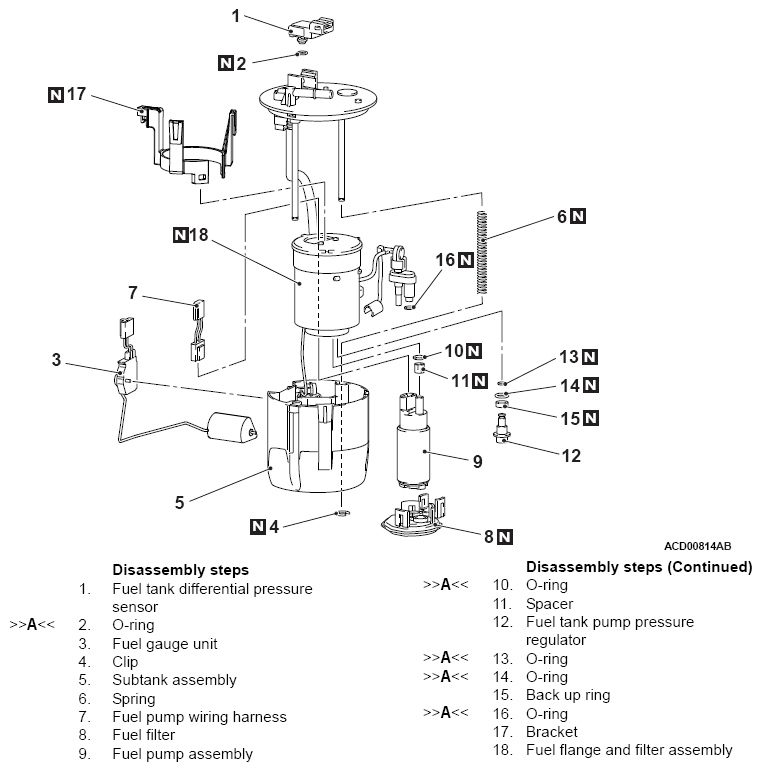

Fig 1: Exploded View Of Fuel Pump Module With Torque Specification (AWD)
G10222990Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
