Removal And Installation

Post-installation operation

• Shift lock mechanism check (Refer to SHIFT LOCK MECHANISM CHECK .)
• Selector lever operation check (Refer to SELECTOR LEVER OPERATION CHECK .)
• Transmission range switch and control cable adjustment (Refer to TRANSMISSION RANGE SWITCH AND CONTROL CABLE ADJUSTMENT .)

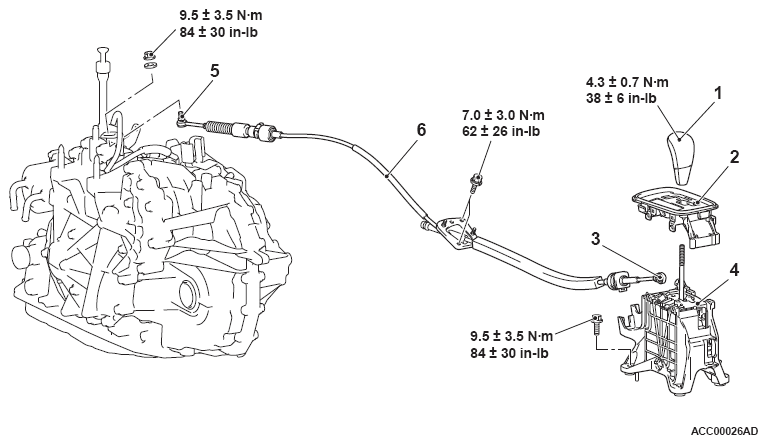

Fig 1: Removing/Installing Transaxle Control Component With Torque Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Selector lever assembly removal steps

• Move the selector lever to the "N" position.
• Rear floor console assembly (Refer to REAR FLOOR CONSOLE ASSEMBLY .)

1. Selector lever knob
2. Shift indicator panel
   • Front floor console center and floor console front (Refer to FRONT FLOOR CONSOLE ASSEMBLY .)
3. Transaxle control cable connection (selector lever side)
4. Selector lever assembly

   Transaxle control cable assembly removal steps (Continued)

5. Transaxle control cable connection (transaxle side)
6. Transaxle control cable

Transaxle control cable assembly removal steps

• Move the selector lever to the "N" position.
• Rear floor console assembly (Refer to REAR FLOOR CONSOLE ASSEMBLY .)

1. Selector lever knob
2. Shift indicator panel
   • Front floor console center and floor console front (Refer to FRONT FLOOR CONSOLE ASSEMBLY .)
   • SRS-ECU, SRS-ECU harness cover (Refer to SRS CONTROL UNIT (SRS-ECU) .)
   • Air cleaner body (Refer to AIR CLEANER .)
   • Battery and battery tray (Refer to REMOVAL AND INSTALLATION .)
