Vehicles without S-AWC

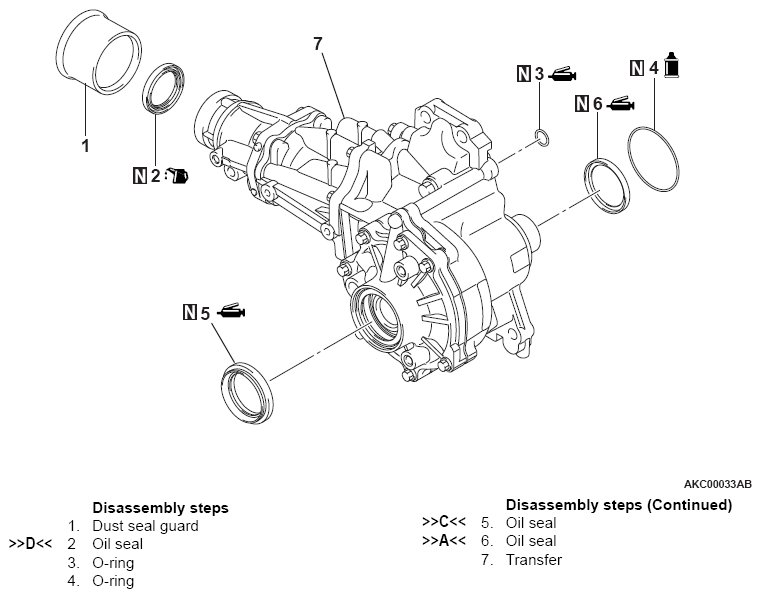

Fig 1: Exploded View Of Transfer With Torque Specification (Vehicles Without S-AWC)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required special tools:

• MD998812: Installer cap
• MB992154: Oil seal installer
• MB992075: Handle
• MD998777: Camshaft oil seal installer adapter
• MD998713: Camshaft oil seal installer
• MB992142: Oil seal installer
• MB990936: Installer adapter
