Removal And Installation

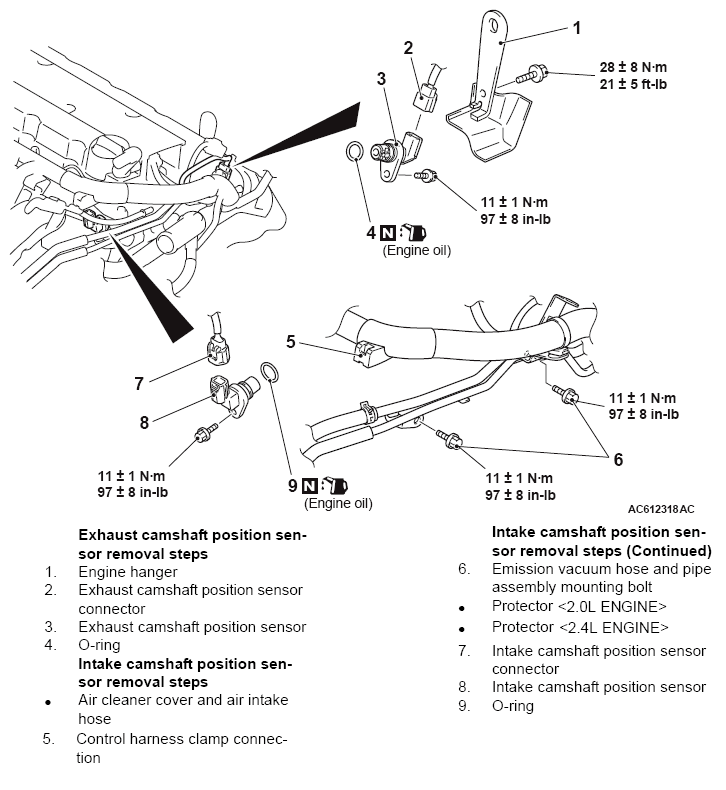

Fig 1: Identifying Camshaft Position Sensor Related Components With Tightening Torque
G10229694Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
