Windshield Glass Installation
- When replacing the windshield glass, temporarily set the windshield glass against the body, and place a mating mark on the windshield glass and body.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
CAUTION:- The primer strengthens the adhesive, so be sure to apply it evenly around the entire circumference. However, a too thick application will weaken the adhesive.
- Do not touch the coated surface.
- Do not apply the primer on the remaining adhesive because of weakening the adhesive.
- Soak a sponge in the primer, and apply evenly to the windshield glass and the body in the specified places.
- Allow the windshield glass to dry for at least 3 minutes after applying primer.
- Fill a sealant gun with adhesive. Then apply the adhesive evenly around the windshield glass within 30 minutes after applying the primer.NOTE: Cut the tip of the sealant gun nozzle into a V shape to simplify adhesive application.

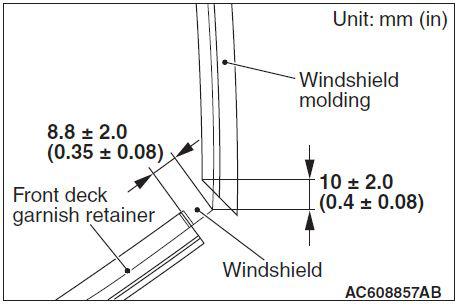

- Align the mating marks on the windshield glass and the body, and lightly press the windshield glass evenly so that it adheres completely.
- Use a spatula or similar tool to remove any excessive adhesive. Clean the surface with 3M™AAD Part number 8906 or equivalent. Avoid moving the vehicle until the adhesive sets.CAUTION:
- Do not move the vehicle unless absolutely necessary.
- When testing for water leakage, do not apply strong water pressure.
- Wait 30 minutes or more, and then test for water leakage.
