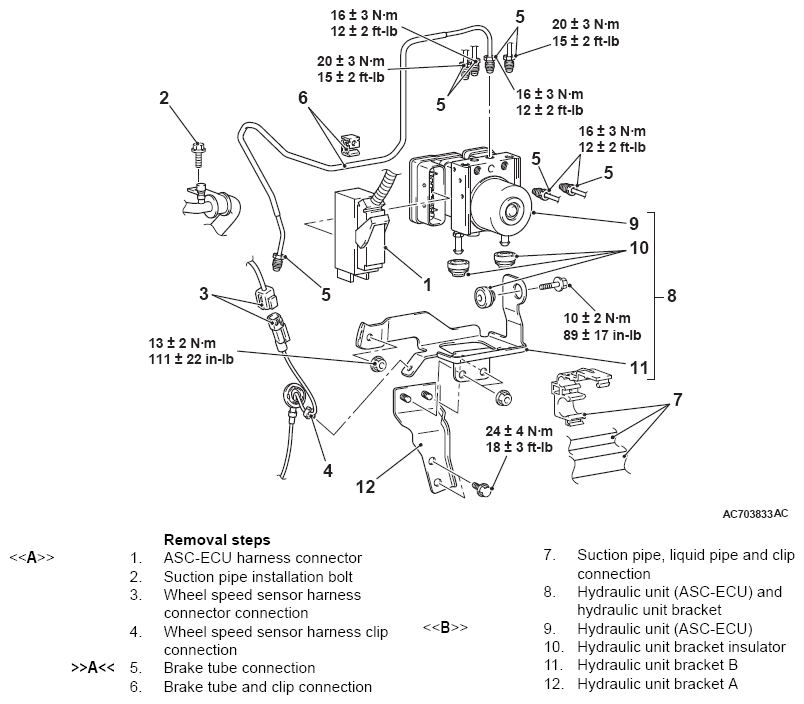

Removal And Installation: Notes
CAUTION:
When the hydraulic unit (integrated with ASC-ECU) is replaced, after turning the ignition switch ON or OFF (vehicle information from ETACS-ECU is registered), always carry out the calibration of all sensors (steering wheel sensor, G and yaw rate sensor, and brake fluid pressure sensor) at one time. (Refer to
IN THE EVENT OF A DISCHARGED BATTERY .)
| Pre-removal operation Brake fluid draining |
Post-installation operation
|
