D Range: <4B11>

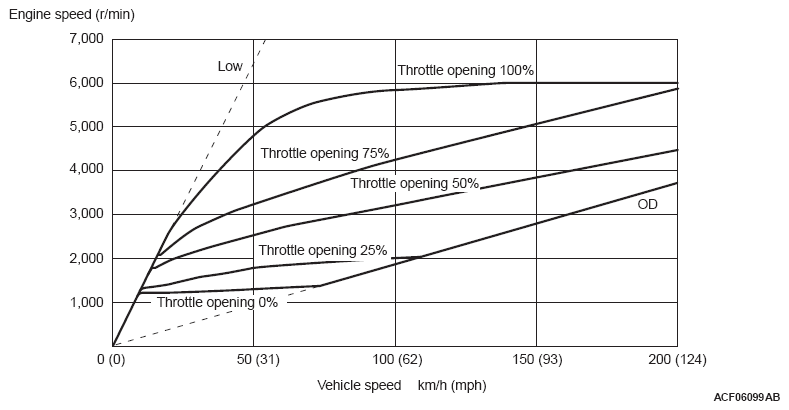

Fig 1: Vehicle Speed Graph - D Range (4B11)
G11739288Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
