Continuously Variable Transaxle On-Vehicle Service
>>
General Information
>>
System Configuration
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
System Configuration

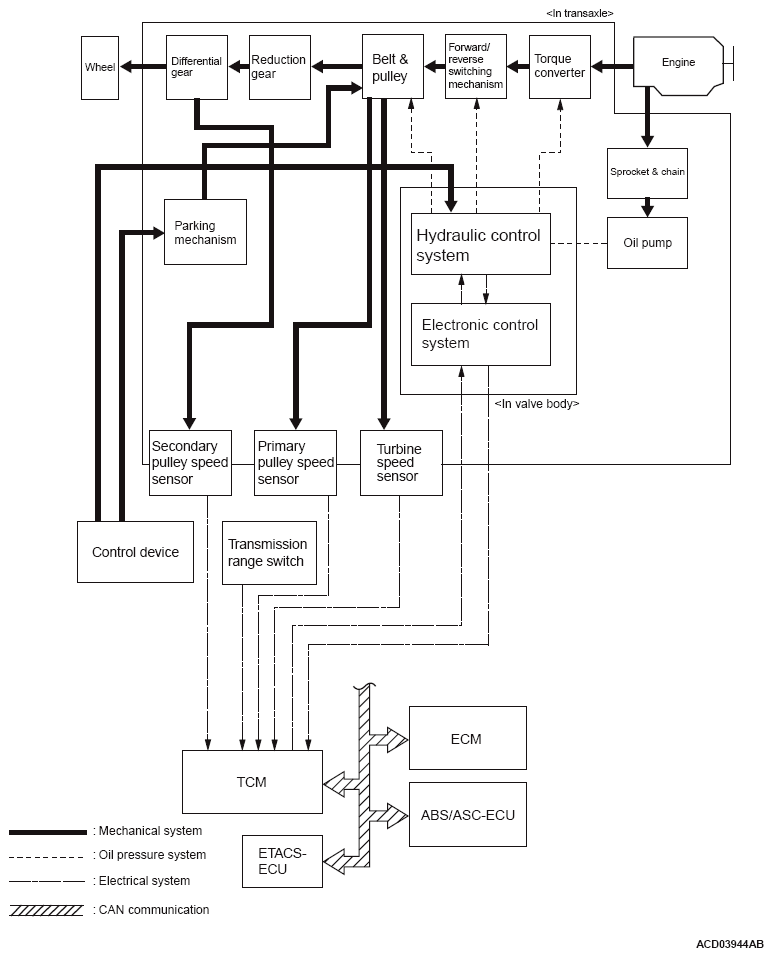

Fig 1: CVT System Diagram
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
