Inspection Procedure 2: The USB adapter data cannot be replayed. <Vehicles with MMCS>: Notes

CAUTION: Before replacing the hands free module, ensure that the power supply circuit, the ground circuit and the communication circuit are normal.

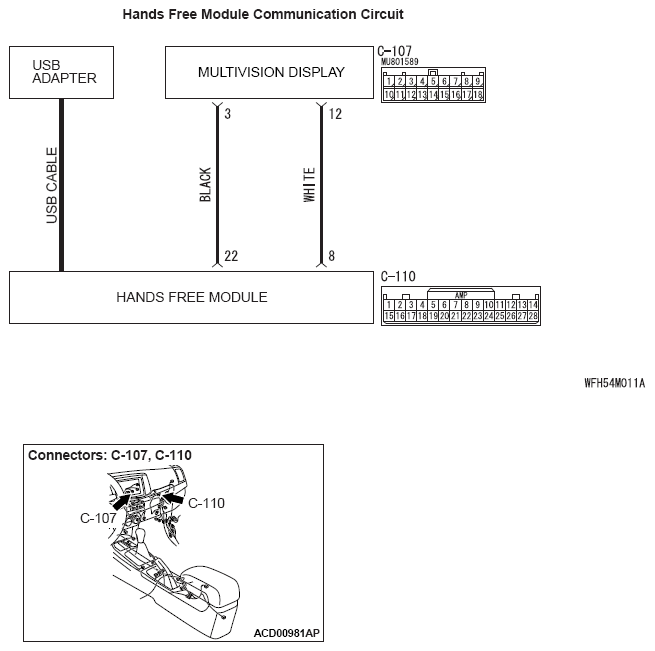

Fig 1: Hands Free Module Communication Circuit

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
