Removal And Installation: Notes

CAUTION:

Be sure to remove the clock spring from the column switch and center the clock spring to prevent the damage of steering wheel sensor.
If the center of the clock spring is not correctly aligned, the steering wheel may not be turned fully or the cable inside the clock spring may be broken, causing the SRS air bag to be inoperative or operated incorrectly.
Before removing the steering wheel/air bag module assembly, refer to SERVICE PRECAUTIONS and DRIVER'S AIR BAG MODULE AND CLOCK SPRING < EXCEPT RALLIART > .
When the steering wheel sensor is replaced or reinstalled, always carry out calibration to make ASC-ECU learn the neutral point (Refer to STEERING WHEEL SENSOR CALIBRATION ).

Pre-removal operation

Driver's airbag module assembly and steering wheel assembly removal (Refer to STEERING WHEEL <hydraulic power steering> or STEERING WHEEL <electrical power steering>).

Post-installation operation

Driver's airbag module assembly and steering wheel assembly installation (Refer to STEERING WHEEL <hydraulic power steering> or STEERING WHEEL <electrical power steering>).
Perform steering wheel calibration (Refer to STEERING WHEEL SENSOR CALIBRATION ).

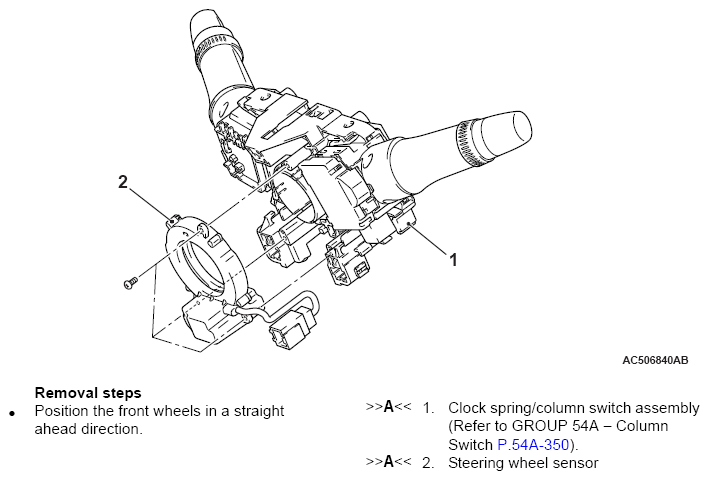

Fig 1: Steering Wheel Sensor Components

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
