Removal And Installation: Notes

WARNING: Be careful not to subject the SRS-ECU to any shocks during removal and installation of the key interlock cable.

Pre-removal operation

Post-installation operation

Foot Duct Installation (Refer to DUCTS .)
Steering Column Lower Cover Installation (Refer to STEERING COLUMN SHAFT ASSEMBLY .)
Bottom Cover (Driver's Side) Installation (Refer to INSTRUMENT LOWER PANEL .)
Floor Console Bracket (A) Installation (Refer to FLOOR CONSOLE ASSEMBLY .)
Key Interlock Mechanism Check (Refer to KEY INTERLOCK MECHANISM CHECK/ADJUSTMENT .)
Selector Lever Operation Check (Refer to SELECTOR LEVER OPERATION CHECK .)

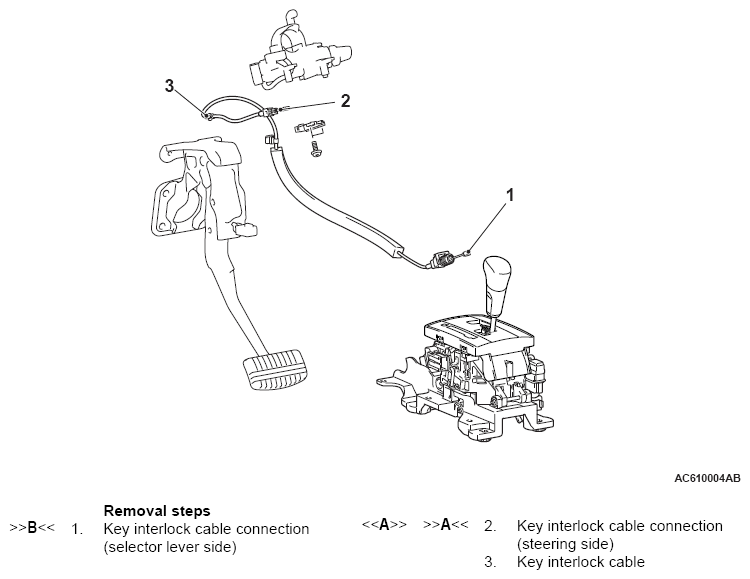

Fig 1: CVT Key Interlock And Shift Lock Mechanisms Components

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
