Diagnostic Result Display Method When Using The Cruise Control Indicator Light

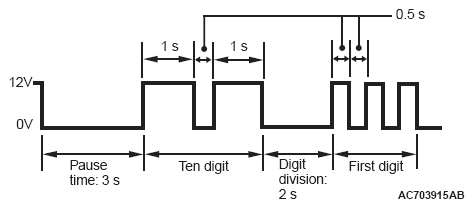

When DTC 23 is set When no DTC is set
G11278022
G11278023
NOTE: Other on-board diagnostic items are also output as voltage waveforms corresponding to DTC numbers.
