Cruise Control Switch Check
- Remove the cruise control switch (Refer to CLUTCH INTERLOCK SWITCH CHECK <M/T> ).

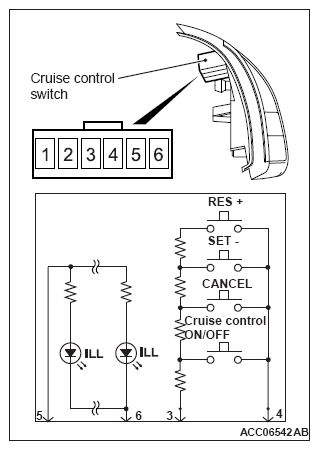

- Measure the resistance between terminal number three and terminal number four when each of the cruise control ON/OFF, CANCEL, SET - and RES + switches is pressed. If the values measured at the time each switch is pressed correspond to those in the table below, the resistance values are correct.
Terminal connector of tester Switch position Specified condition 3 - 4 All switches are released. Open loop Cruise control ON/OFF switch is pressed 176 - 180 ohm CANCEL switch is pressed 460 - 470 ohm SET - switch is pressed 1030 - 1051 ohm RES + switch is pressed 2725 - 2837 ohm - Check that illumination of the cruise control switch turns on when the battery positive terminal is connected to cruise control switch connector terminal number five and the battery negative terminal is connected to cruise control switch connector terminal number six.
