Disassembly And Assembly: Notes

CAUTION: As for the EBJ or VUJ assembly, only the EBJ or VUJ boot can be replaceable, and other parts cannot be disassembled.

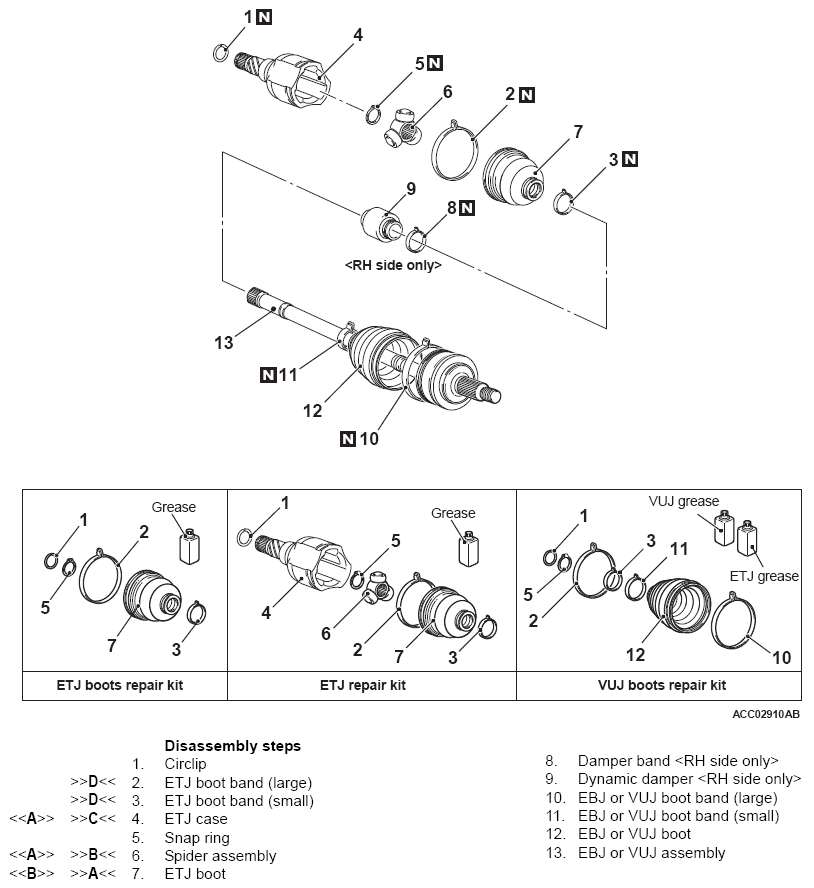

Fig 1: Front Axle Driveshaft Assembly Components
G11278456Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
