Removal And Installation: Notes

CAUTION:

The magnetic encoder collects metallic particles easily, because it is magnetized. Make sure that the magnetic encoder should not collect metallic particles. Check that there is not any trouble prior to reassembling it.
When removing and installing the front wheel hub assembly, make sure that the magnetic encoder (integrated with the inner oil seal) does not contact with surrounding parts to avoid damage.
When removing and installing the front wheel speed sensor, make sure that the sensor head at the end does not contact with surrounding parts to avoid damage.
The parts indicated by * are the nuts with friction coefficient stabilizer. In removal, ensure there is no damage, clean dust and soiling from the bearing and thread surfaces, and tighten them to the specified torque.

Pre-removal Operation

Front under cover removal (Refer to UNDER COVER REMOVAL AND INSTALLATION ).
Lower arm assembly and Stabilizer bar Connection Removal (Refer to STABILIZER BAR REMOVAL AND INSTALLATION ).

Post-installation Operation

Using your fingers, press the Ball Joint Dust Cover to check for a crack or damage.
Lower arm assembly and Stabilizer bar Connection
Installation (Refer to STABILIZER BAR REMOVAL AND INSTALLATION ).
Front under cover installation (Refer to GROUP 51, UNDER COVER REMOVAL AND INSTALLATION ).
Check the beam direction of the headlight (Low beam) (Refer to HEADLIGHT AIMING ).

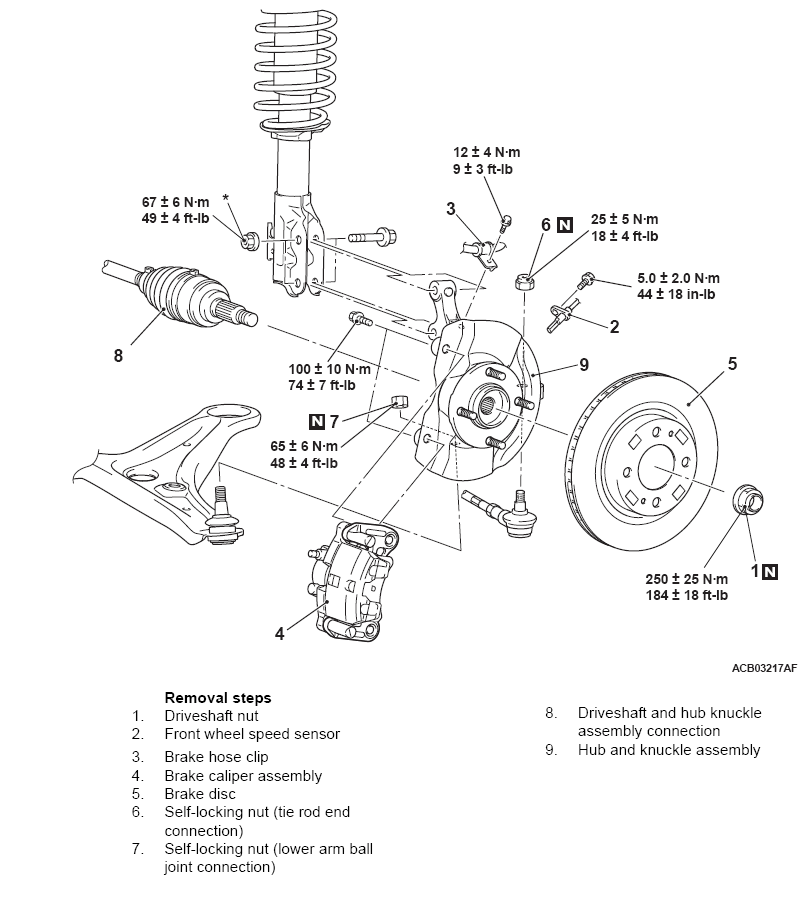

Fig 1: Front Axle Hub Assembly Components With Torque Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
