Removal And Installation: Notes

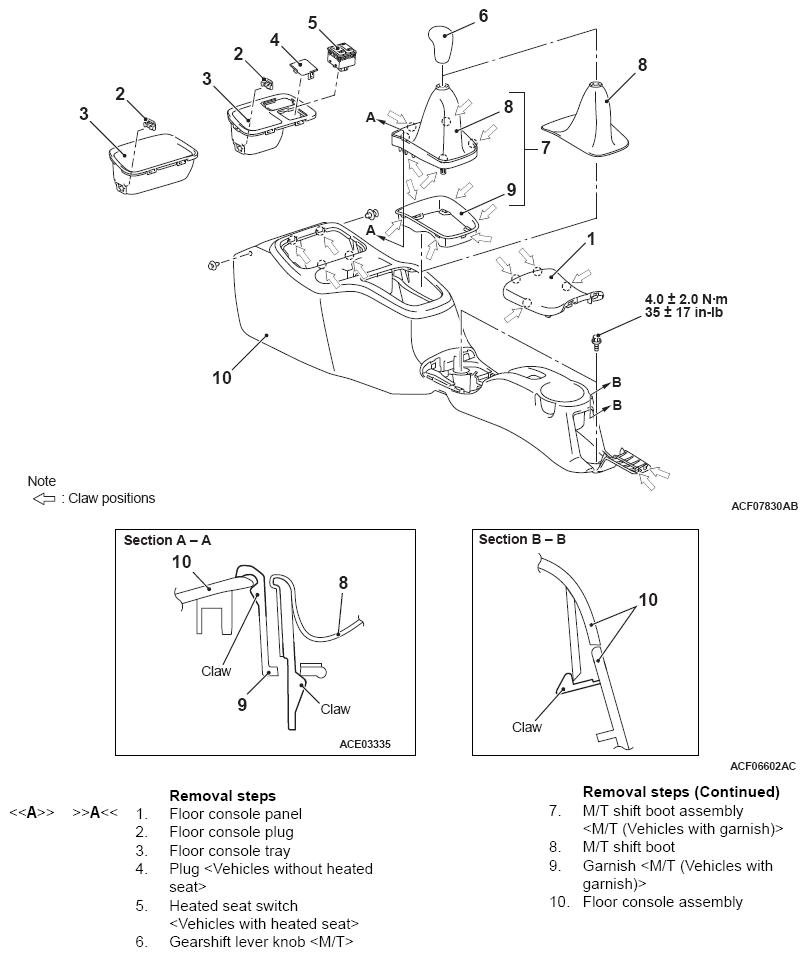

Fig 1: Floor Console Assembly Components With Torque Specifications
G11280563Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
