>>A<< Front Seat Assembly Installation

  1. Confirm that both the seat slides are locked, and then temporarily tighten all the bolts and nuts shown in the figure so that no load is applied to the front seat cushion.
  2. Tighten all the bolts and nuts to the specified torque.

Tightening torque: 43 ± 8 N.m (32 ± 5 ft-lb.) (Bolt)

Tightening torque: 30 ± 5 N.m (22 ± 3 ft-lb.) (Nuts)

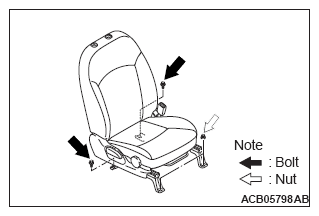

Fig 1: Front Seat Bolt And Nut
G11280581Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
