>>A<< Steering Wheel Assembly/Driver's Air Bag Module Installation

CAUTION: When installing the steering wheel assembly and air bag module, do not trap the clock spring harness.

1. Perform the clock spring center alignment (Refer to DRIVER'S AIR BAG MODULE AND CLOCK SPRING ).
2. After checking that the clock spring center alignment is already performed, install the steering wheel assembly so that its boss part is aligned with the rib of the clock spring slowly.
3. After the installation, check that there is no abnormality when the steering wheel is fully turned to left and right.

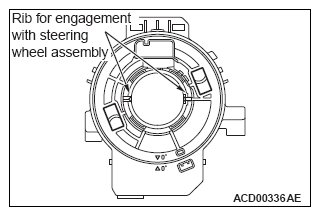

Fig 1: Rib Of Clock Spring

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
