Disassembly And Reassembly: Notes

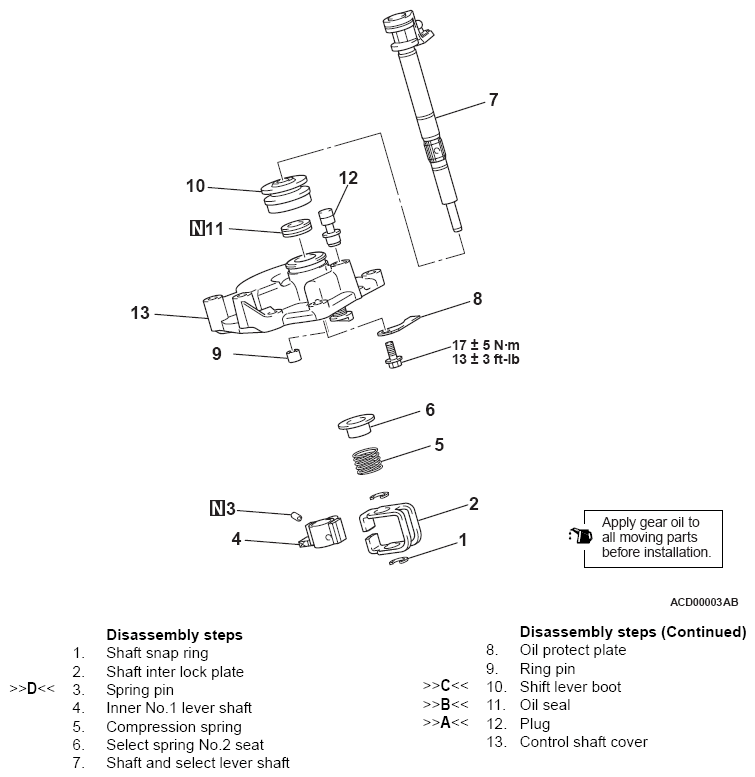

Fig 1: Control Housing Components With Torque Specifications
G11278183Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
