>>B<< Synchromesh Shifting Key No. 2 Spring/Synchromesh Shifting Key No. 2/Synchronizer Clutch Hub No. 2/Synchronizer Ring No. 2 Installation

1. Synchronizer ring No. 2 and synchronizer clutch hub No. 2 are attached beforehand and it is made synchronizer assembly.
2. Check that the synchronizer clutch hub No. 2 and synchronizer ring No. 2 is in the correct installation direction, and put it on the output shaft.
   Fig 1: Synchromesh Shifting Key Installation Direction

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
3. Using special tools, install the synchronizer clutch hub No. 2 with the press.
   • Installer cap (MD998812)
   • Installer-200 (MD998814)
   • Installer adapter (MD998820)
4. Make sure that the outer synchronizer ring on the 5th gear sub-assembly side can rotate freely.

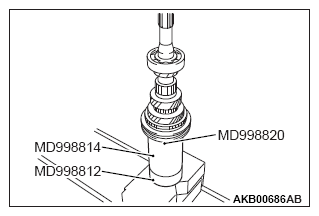

Fig 2: Installing Synchronizer Clutch Hub

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
