>>A<< Transaxle Assembly Installation

When installing the transaxle assembly, apply the specified grease to the spline of clutch disc and input shaft.

Specified grease: Mitsubishi Part No. 0101011 or equivalent

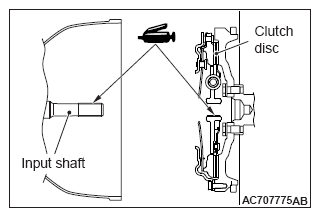

Fig 1: Input Shaft And Clutch Disc Lubrication Points

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
