>>A<< Gearshift Cable And Select Cable Assembly/Gearshift Link Clip/Gearshift Cable Connection (Transaxle Side)/Select Cable Connection (Transaxle Side) Installation

1. Cross the gear shift cable and the select cable as shown and install them to the transaxle.
   CAUTION: Securely insert the clip, shift cable, and select cable until they click into place.

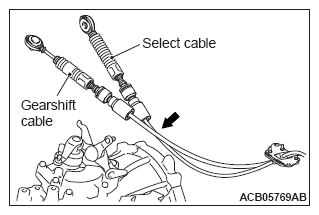

   Fig 1: Locating Gearshift Cable And Select Cable Cross

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
2. After installing the new gearshift link clip to the cable bracket of the transaxle, install the gearshift cable and select cable to the cable bracket.
   NOTE: The clip is reversible.
   Fig 2: Installing Gearshift Link Clip Into Cable Bracket

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
3. Securely fit the tips of the gearshift cable and the select cable.
4. Move the shift lever and gearshift lever to all positions and check that the operation is smooth.

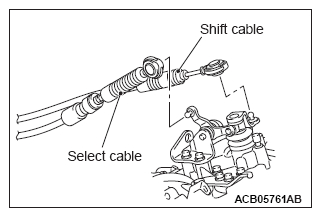

Fig 3: Installing Shift Cable And Select Cable

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
