<<A>> Select Cable Connection (Transaxle Side)/Gearshift Cable Connection (Transaxle Side)/Gearshift Link Clip Removal

CAUTION: Be careful not to pull out the cable directly to disconnect the joint because the cable could be broken.

1. Use the clip remover (special tool: MB992277), and disconnect the joint.

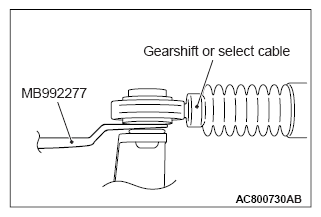

   Fig 1: Removing Gearshift And Select Cable Joint

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
2. Push up the claws of the gearshift link clip using a screwdriver, etc., and then remove the gearshift link clip from the bracket together with the cables.

Fig 2: Gearshift Cable, Select Cable, Gearshift Link Clip And Claws

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
