ASC Off Switch Continuity Check

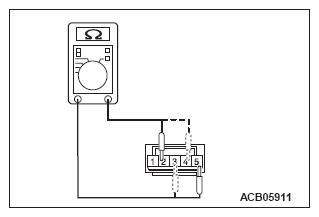

- As shown in the figure, connect a multimeter to the ASC OFF switch as a single unit.
- Check the continuity status when the ASC OFF switch is pressed and when the switch is released.
| Tester connection | When the ASC OFF switch is released (Not being operated) | When the ASC OFF switch is pressed |
|---|---|---|
| 2 - 5 | Open loop | Should be less than 2 ohm |
| 3 - 4 | Should be less than 2 ohm | Should be less than 2 ohm |
